06.12 · DEVICES Overdrive

Crystal Pistol

CATEGORY
Overdrive

Transparent low-to-medium gain overdrive with post-clipping tone shaping

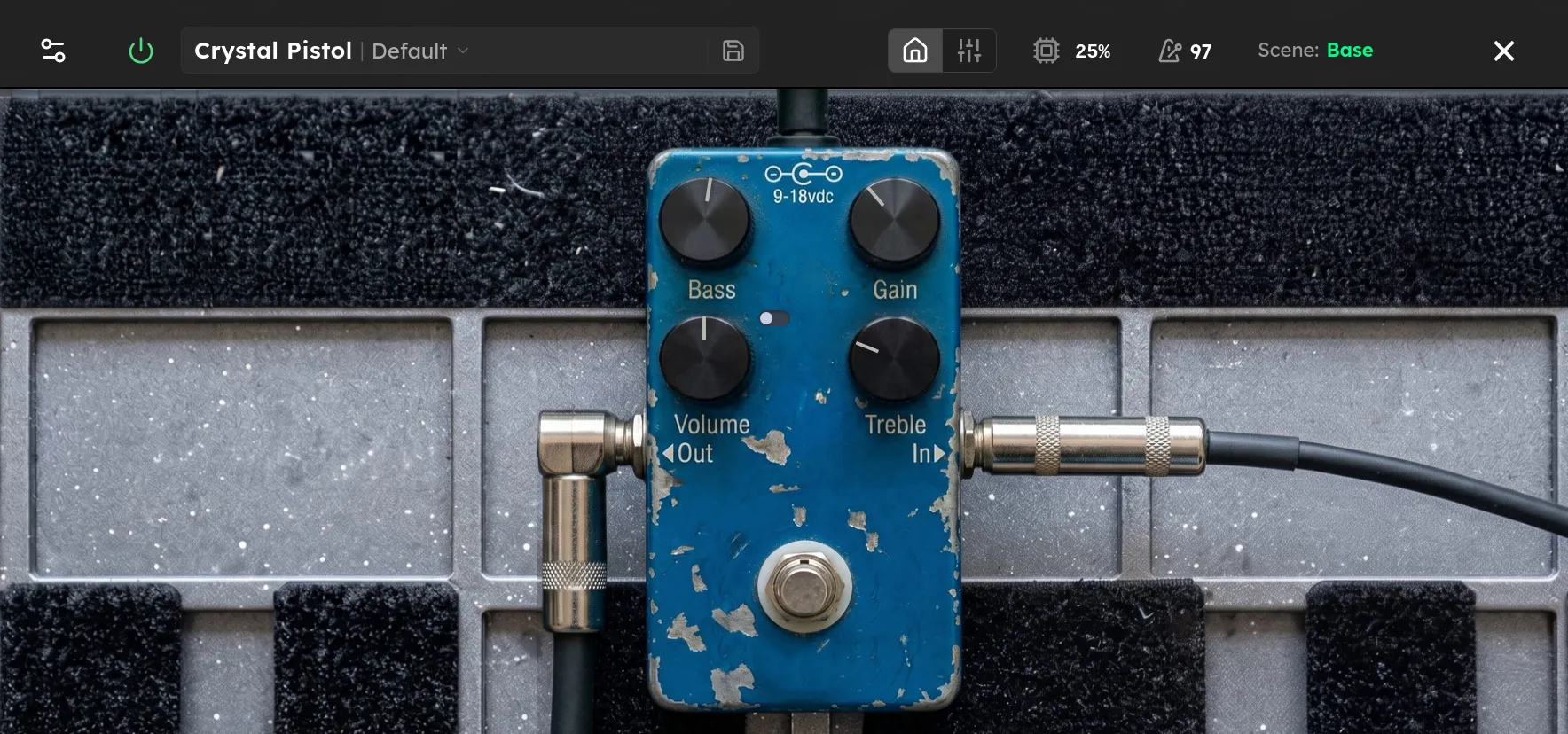

The Crystal Pistol device screen: Bass, Gain, Volume, and Treble knobs.

Parameters

ParameterRangeDefault
Bass60 – 500 Hz294.2831 Hz
Gain0 – 100 %35 %
Treble3000 – 12000 Hz5223.3034 Hz
Clip ModeSymmetrical, AsymmetricalSymmetrical

Overview

Crystal Pistol is a clear, low to medium gain overdrive designed to preserve pick attack and chord detail. It works as a light standalone drive, an always on source of edge, or a boost that adds clipping before an amp without a strong fixed midrange voice.

Drive sets the clipping intensity. Bass is the cutoff of a high pass filter after clipping, so higher frequency values remove more low end and tighten the sound. Treble is the cutoff of a low pass filter. Higher values retain more brightness, while lower values make the drive warmer. Symmetrical clipping has a balanced, smooth character. Asymmetrical clipping adds a less even waveform and more harmonic texture.

Tips

  • For an open rhythm sound, start with Drive around 25%, Bass near 100 Hz, Treble around 8 kHz, and Symmetrical clipping.
  • To tighten a driven amp, keep Drive low and raise the Bass cutoff until palm muted notes stay controlled.
  • For a warmer lead, lower the Treble cutoff and try Asymmetrical clipping for added texture.
  • Use the lowest Bass cutoff that keeps the rig clear. Excessive bass removal can make solo guitar sound impressive but thin out the full band.
  • Compare both Clip Modes at the same loudness. The extra harmonics of Asymmetrical mode can change perceived level.
